ACCUENERGY

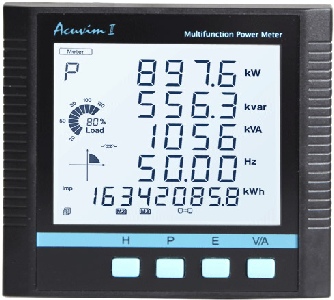

The Acuvim II series are high-end multifunction power and energy meters
manufactured by Accuenergy. They are the ideal choice for the monitoring
and controlling of power distribution systems. Some of the features and
electrical power parameters available on the Acuvim II series are:
- True-RMS Measuring Parameter
- ANSI C12.20(0.2 Class) and IEC 62053-22(0.2S Class)
- Power Quality Analysis
- Over/Under Limit Alarm
- Multi Communication Ports (Eg: Ethernet, RS485)
- Web Server and Email Sending
- Switch Status Monitoring
- Waveform Capture
- Measure Individual Harmonics from 2nd to 63rd(Acuvim IIR/IIE/IIW)
- Module Design
- Data-Logging
- TOU, 4 Tariffs, 12 Seasons, 14 Schedules
- Class Leading Warranty
It comes in the following models:
Acuvim II
Acuvim IIR
Acuvim IIE
Acuvim IIW
The Acuvim-II series of meters will meter or monitor the following; voltage, current, power, reactive power, apparent power, frequency, power factor, energy, reactive energy, apparent energy, power quality, voltage harmonics, current harmonics, voltage imbalance factor, current imbalance factor, max/min statistics with time stamps and meter running hour and load running hour. Different models have different functions, so please select the meter that best fits your application.
For additional information such as features, specifications, and typical wiring drawings, please click the link for the factory web page on the Acuvim-II series of meters.
